Building the home of your dreams? Then choosing the foundation is a key step. The owner's choice will determine the durability, stability and reliability of the structure. The right decision will prevent many problems related to moisture or subsidence. Which type of foundation to choose for frame construction — strip, slab or column — depends on the plot conditions, soil type, climate and budget. In this text we look in detail at different foundation options and their pros and cons to help you build a house that exceeds all expectations.
Contents
What is a frame house and why do people choose it?
Modern construction technologies offer many options for different types of housing. Frame houses are especially popular, standing out for their lightness and strength thanks to timber or metal frames. The main technologies used are frame-panel and frame-and-truss. Each of these methods has its own unique advantages, which can vary depending on different factors.
Building a frame house starts with assembling the frame. All elements must be made from specially treated, kiln-dried boards protected against external damage. After the foundation is laid, the bottom plate is placed on it and the vertical studs are fixed to it. Then the top plate and rafter system are formed, giving the structure the necessary rigidity.
Once the frame is ready, it's time for insulation and cladding. Modern materials such as windproof membranes and vapour barrier films are used to ensure a comfortable indoor climate. Basalt wool is often used for insulation, as it effectively protects against cold and noise.
At the same time, thanks to the lightness of frame structures, all utilities can be connected without delay. The energy-efficiency and finishing stages are also completed quickly. What's especially convenient is that you can live in a frame house immediately after construction is finished. Foundation settlement isn't a problem for this type of structure, because no settling period is needed. This is because, according to regulations, such a building is made from dry timber with a moisture content of up to 18%. If you value speed and quality, it's the optimal choice for building a house for families and more.

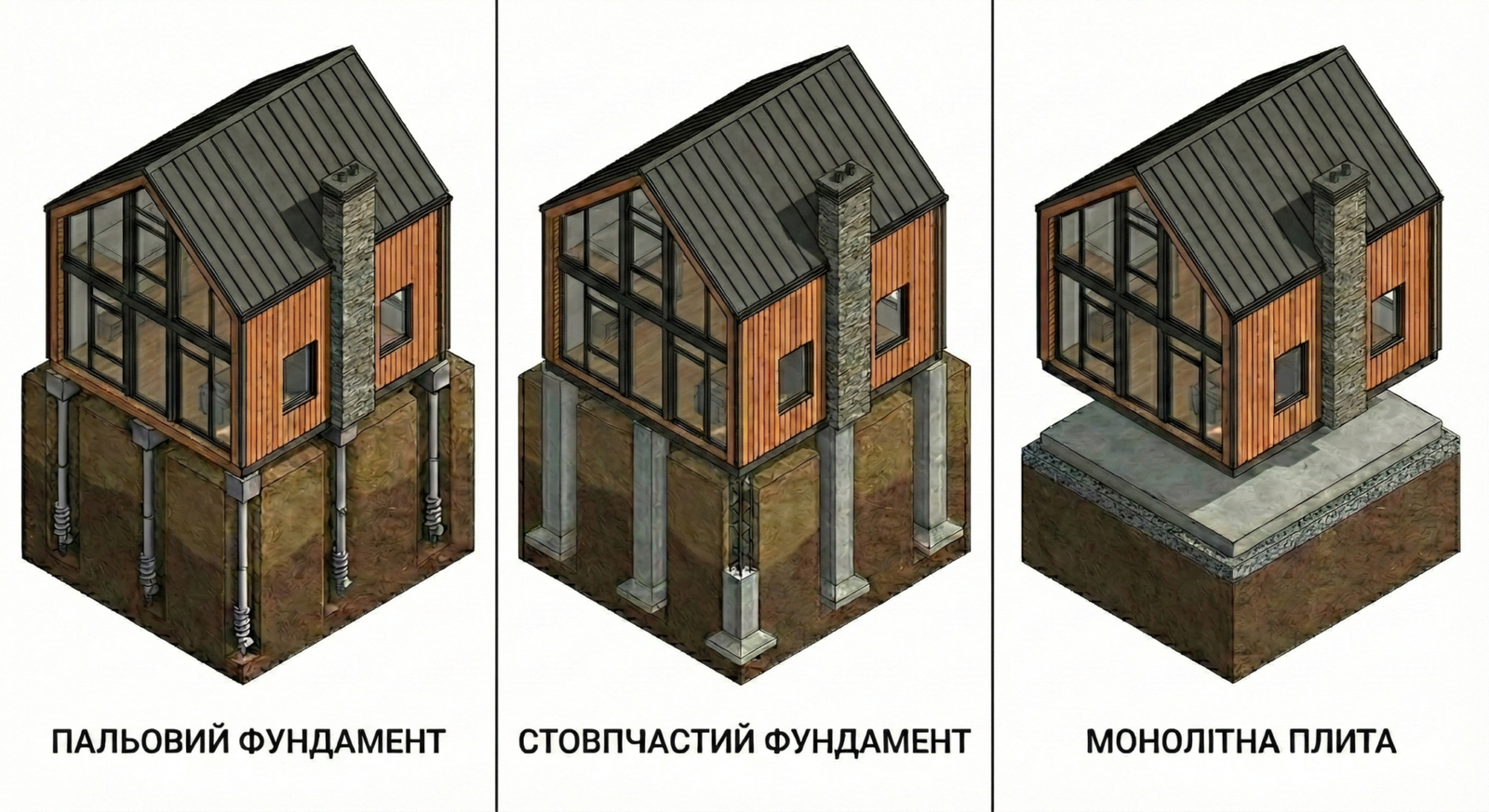

What types of foundation are there for a frame house?
Since frame houses are lightweight, they don't need a very powerful foundation. Here are the main types of foundation for a frame house and their features:
- A column foundation is the best option for small houses. Columns are installed under load-bearing walls or areas of increased load, for example under baths or fireplaces. Concrete columns are usually used, but brick structures need extra waterproofing, as brick doesn't tolerate high humidity. This type of foundation requires additional protection of the space under the house from debris and animals by filling the gaps between the columns, usually with moisture-resistant materials.
- A strip foundation is suitable for medium and large frame houses and is reliable even on problematic soils. If the soil crumbles, it's important to use a sub-base mix of sand and gravel. First the bottom of the trench is compacted, then a crushed-stone bed is laid. After the formwork is installed, rebar is placed in it and concrete is poured. The strip usually rises 40–60 cm above ground level, and its width depends on the wall thickness.
- A monolithic reinforced concrete slab is another option, usually used on soils where other types of foundation cannot be used. Before pouring the slab, the topsoil is removed and a clean, level base is prepared. In some cases a grillage is installed first and connected to the slab.
- A pile foundation is a reliable and fairly budget-friendly option for frame houses, especially on unstable soils. The technology involves driving piles into the ground down to a firm layer, which prevents the building from settling.
Each type of foundation listed above has its own features. Take them into account to start construction on your plot with maximum safety and benefit.
What factors determine the choice of foundation for a frame house?
The foundation for a frame house should be chosen with particular care. It's the base of your home, so analyse the following factors before making a choice:
- Soil type. If your plot is on firm, stable soil, you can choose any type of foundation. However, if the ground is boggy or sandy, the best solution is a screw-pile foundation, as standard concrete pillars may not withstand winter frost heave.
- Groundwater. It's important to pay attention to the groundwater level, especially in winter. If the water level is low, a strip foundation can be used without worry, but increased humidity can be a problem.
- Plot terrain. On uneven ground, pile foundations are worth choosing, as their design guarantees stability even in difficult conditions. This solution adapts to any plot layout.
- Precipitation. In areas with frequent rain and snowfall, a more robust foundation should be chosen for a frame house. Your local climate will influence the choice of materials and structural solutions.
- Winter temperature. Check how deep the ground freezes in your area. In regions with low temperatures, around −5 °C, it's important to have a foundation that accounts for frost penetration. In warmer regions you have more freedom of choice.
A foundation for a frame house should combine all these aspects harmoniously. In that case, you'll be able to enjoy your home for years without unnecessary problems.
What foundation requirements must be met when building a frame house?
Installing a frame house is a particularly important stage that can't be skipped. To get a strong house, simply choosing a suitable foundation isn't enough. Construction requires specialists who will help create the optimal foundation design for your frame house. Working with professionals ensures your home stays reliable for many years to come.
An incorrectly laid foundation for a frame house can lead to serious consequences such as settlement or deformation, especially with unpredictable seasonal changes in the soil. To ensure optimal conditions, the foundation must meet strength and stability requirements and be able to bear various loads. In difficult weather conditions, such as frequent rain or heavy snowfall, additional measures must be taken to improve waterproofing. Don't forget the groundwater level either, as excessive moisture can seriously affect the stability of the structure.
Compliance with building codes is also mandatory, as each project has its own features that may vary by region. That's why construction requires a responsible approach, a team of professional builders and the right foundation.
Conclusions
Choosing a foundation for a frame house is an important and responsible stage of construction, as it determines both the reliability and durability of your home. Strip, pile and column foundations differ in their properties, so everyone can choose the option that meets all their needs and the features of their plot.
When choosing a foundation, the financial aspect should also be considered. It's natural to want to optimise costs, including on the foundation. However, it's important to remember that savings shouldn't be excessive, i.e. they shouldn't compromise the technological process. Miscalculations or ignoring technological aspects in frame construction can lead to serious problems in the future. Choosing a foundation should be based on scientifically sound geological requirements, as every plot has its own features. The slightest deviation from these requirements can have significant consequences for the stability of the building. When making a decision, it's important to consider the soil characteristics, the groundwater level and the climatic conditions of the region where construction is planned.
Thus, the right choice of foundation should be the result of a comprehensive analysis of these factors. This not only helps save money but also guarantees high construction quality, which ultimately affects the durability every customer wants.
